Brief Description

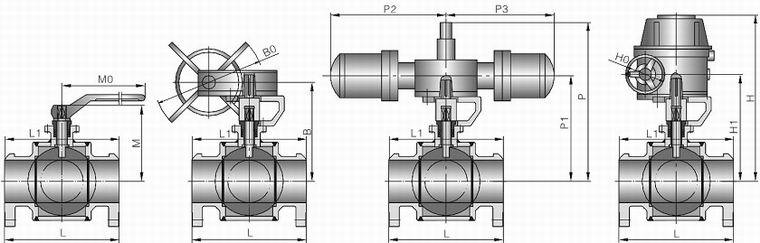

The floating ball valve manufactured by Sedelon company is generally employing casted steel valve body, however, as required by customers, forged steel valve body is also available, of which the main sizes such as flange connections and face to face dimensions are the same as that of the cast steel ball valve.
|
Pressure |
No,imal |
Flange |
Buit |
Hand- |
Worm geae worm |
Air-operating and Fluid drivng |
Electric driving |
||||||||||
|
inch |
L |
L1 |
M |
M0 |
B |
B0 |
Model |
P |
P1 |
P2 |
P3 |
Model |
H |
H1 |
H0 |
Model |
|
|
150LB |
1/2 |
108 |
140 |
73 |
130 |
- |
- |
- |
205 |
125 |
326 |
136 |
AG06 |
- |
- |
- |
- |
|
3/4 |
117 |
152 |
80 |
130 |
- |
- |
- |
235 |
140 |
326 |
136 |
AG09 |
- |
- |
- |
- |
|
|
1 |
127 |
165 |
88 |
160 |
- |
- |
- |
244 |
148 |
347 |
181 |
AG13 |
- |
- |
- |
- |
|
|
11/4 |
140 |
178 |
105 |
180 |
- |
- |
- |
325 |
195 |
420 |
181 |
AG13 |
- |
- |
- |
- |
|
|
11/2 |
165 |
190.5 |
95 |
230 |
- |
- |
- |
340 |
195 |
420 |
181 |
AG13 |
- |
- |
- |
- |
|
|
2 |
178 |
216 |
130 |
230 |
- |
- |
- |
354 |
223 |
426 |
257 |
AG13 |
435 |
340 |
190 |
Q60-1 |
|
|
21/2 |
191 |
241 |
145 |
400 |
- |
- |
- |
366 |
235 |
426 |
257 |
AG13 |
445 |
350 |
190 |
Q60-1 |
|
|
3 |
203 |
283 |
191 |
400 |
- |
- |
- |
415 |
285 |
490 |
257 |
AG13 |
455 |
360 |
190 |
Q60-1 |
|
|
4 |
229 |
305 |
200 |
460 |
- |
- |
- |
485 |
330 |
523 |
287 |
AG13 |
495 |
400 |
190 |
Q60-1 |
|
|
5 |
356 |
381 |
225 |
750 |
- |
- |
- |
607 |
340 |
378 |
378 |
AW17 |
575 |
425 |
400 |
Q120-1 |
|
|
6 |
394 |
457 |
245 |
750 |
260 |
400 |
A |
623 |
415 |
378 |
378 |
AW17 |
645 |
495 |
400 |
Q120-1 |
|
|
8 |
457 |
521 |
285 |
950 |
300 |
600 |
B |
742 |
500 |
530 |
530 |
AW20 |
680 |
530 |
400 |
Q120-1 |
|
|
Pressure |
No,imal |
Flange |
Buit |
Hand- |
Worm geae worm |
Air-operating and Fluid drivng |
Electric driving |
||||||||||
|
inch |
L |
L1 |
M |
M0 |
B |
B0 |
Model |
P |
P1 |
P2 |
P3 |
Model |
H |
H1 |
H0 |
Model |
|
|
300LB |
1/2 |
140 |
140 |
75 |
140 |
- |
- |
- |
205 |
125 |
326 |
136 |
AG06 |
- |
- |
- |
- |
|
3/4 |
152 |
152 |
80 |
140 |
- |
- |
- |
236 |
140 |
326 |
136 |
AG09 |
- |
- |
- |
- |
|
|
1 |
165 |
165 |
85 |
180 |
- |
- |
- |
245 |
150 |
347 |
181 |
AG09 |
- |
- |
- |
- |
|
|
11/4 |
178 |
178 |
100 |
230 |
- |
- |
- |
325 |
195 |
420 |
181 |
AG13 |
- |
- |
- |
- |
|
|
11/2 |
190.5 |
190.5 |
105 |
230 |
- |
- |
- |
325 |
195 |
420 |
181 |
AG13 |
- |
- |
- |
- |
|
|
2 |
216 |
216 |
135 |
240 |
- |
- |
- |
360 |
230 |
426 |
257 |
AG13 |
340 |
340 |
190 |
Q60-1 |
|
|
21/2 |
241 |
241 |
165 |
400 |
- |
- |
- |
390 |
260 |
426 |
257 |
AG13 |
445 |
350 |
190 |
Q60-1 |
|
|
3 |
283 |
283 |
190 |
400 |
- |
- |
- |
415 |
285 |
490 |
257 |
AG13 |
455 |
360 |
190 |
Q60-1 |
|
|
4 |
305 |
305 |
235 |
750 |
- |
- |
- |
510 |
350 |
523 |
287 |
AG13 |
495 |
400 |
190 |
Q60-1 |
|
|
5 |
381 |
381 |
240 |
750 |
- |
- |
- |
620 |
415 |
610 |
378 |
AW17 |
575 |
425 |
400 |
Q120-1 |
|
|
6 |
403 |
403 |
255 |
900 |
325 |
400 |
A |
675 |
465 |
610 |
378 |
AW17 |
645 |
495 |
400 |
Q120-1 |
|
|
8 |
502 |
521 |
310 |
1200 |
390 |
600 |
B |
825 |
580 |
885 |
530 |
AW20 |
680 |
530 |
400 |
Q120-1 |
|
|
Pressure |
No,imal |
Flange |
Buit |
Hand- |
Worm geae worm |
Air-operating and Fluid drivng |
Electric driving |
||||||||||
|
inch |
L |
L1 |
M |
M0 |
B |
B0 |
Model |
P |
P1 |
P2 |
P3 |
Model |
H |
H1 |
H0 |
Model |
|
|
600LB |
1/2 |
165 |
165 |
75 |
160 |
- |
- |
- |
230 |
135 |
283 |
136 |
AG06 |
- |
- |
- |
- |
|
3/4 |
190.5 |
190.5 |
80 |
160 |
- |
- |
- |
235 |
140 |
283 |
136 |
AG09 |
- |
- |
- |
- |
|
|
1 |
216 |
216 |
85 |
230 |
- |
- |
- |
245 |
150 |
283 |
181 |
AG09 |
- |
- |
- |
- |
|
|
11/4 |
178 |
178 |
100 |
230 |
- |
- |
- |
265 |
170 |
350 |
181 |
AG13 |
- |
- |
- |
- |
|
|
11/2 |
241 |
241 |
105 |
400 |
- |
- |
- |
265 |
170 |
350 |
181 |
AG13 |
- |
- |
- |
- |
|
|
2 |
292 |
292 |
135 |
400 |
- |
- |
- |
365 |
235 |
590 |
257 |
AG13 |
500 |
350 |
190 |
Q120-1 |
|
|
21/2 |
330 |
330 |
165 |
650 |
- |
- |
- |
395 |
265 |
590 |
257 |
AG13 |
520 |
370 |
190 |
Q120-1 |
|
|
3 |
356 |
356 |
190 |
650 |
292 |
400 |
A |
470 |
315 |
523 |
257 |
AG13 |
545 |
395 |
190 |
Q120-1 |
|
|
4 |
406 |
406 |
235 |
1050 |
398 |
600 |
B |
600 |
395 |
378 |
378 |
AW17 |
560 |
410 |
190 |
Q120-1 |
|
|
6 |
559 |
559 |
- |
- |
400 |
800 |
C |
650 |
425 |
378 |
378 |
AW17 |
- |
- |
- |
- |
|
|
8 |
660 |
660 |
- |
- |
430 |
800 |
C |
680 |
485 |
530 |
530 |
AW20 |
- |
- |
- |
- |
|
