Globe Valve 800Lb
Standard Material Specifications
|
NO.
|
Part Name
|
CS to ASTM
|
AS to ASTM
|
SS to ASTM
|
|
Type A105
|
Type F22
|
Type F304(L)
|
Type F316(L)
|
|
1
|
Body
|
A105
|
A182 F22
|
A182 F304(L)
|
A182 F316(L)
|
|
2
|
Disc
|
A276 420
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
3
|
Stem
|
A182 F6
|
A182 F304
|
A182 F304(L)
|
A182 F316(L)
|
|
4
|
Gasket
|
Corrugated SS + graphite
|
SS + PTFE
|
|
5
|
Bonnet
|
A105
|
A276 304
|
A276 304(L)
|
A276 316(L)
|
|
6
|
Bonnet Bolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
7
|
Pin
|
A276 420
|
A276 304
|
|
8
|
Gland
|
A276 410
|
A182 F304(L)
|
A182 F316(L)
|
|
9
|
Gland Eyebolt
|
A193 B7
|
A193 B16
|
A193 B8
|
A193 B8M
|
|
10
|
Gland Flange
|
A216 WCB
|
A351 CF8
|
|
11
|
Gland Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
12
|
Yoke Nut
|
A276 410
|
|
13
|
H.W.Nut
|
A194 2H
|
A194 4
|
A194 8
|
A194 8M
|
|
14
|
Nameplate
|
SS
|
|
15
|
Handwheel
|
A197
|
|
16
|
Stem Packing
|
Flexible Graphite
|
PTFE
|
|
Suitable Medium
|
W.O.G.etc
|
W.O.G.etc
|
HNO3CH3OOH etc
|
|
Sutiable Temperature
|
-29 425
|
-29 550
|
-29 180
|
Note:聽Other materials are available upon request.

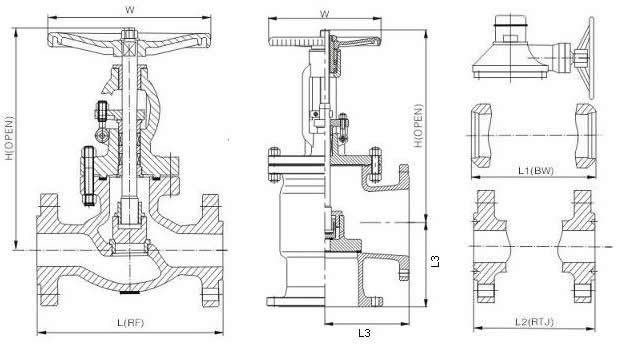

Dimensions (mm) and Weights (Kg)
|
NPS
|
Conv.
|
3/8
|
1/2
|
3/4
|
1
|
1-1/4
|
1-1/2
|
2
|
|
|
Full
|
|
3/8
|
1/2
|
3/4
|
1
|
1-1/4
|
1-1/2
|
2
|
|
L
|
79
|
79
|
92
|
111
|
120
|
152
|
172
|
200
|
|
H(OPEN)
|
166
|
166
|
171
|
207
|
240
|
258
|
330
|
355
|
|
W
|
100
|
100
|
100
|
125
|
160
|
160
|
180
|
200
|
|
Weights
|
Bolted
|
1.9
|
1.9
|
2.1
|
3.5
|
6.0
|
7.5
|
11.4
|
14.6
|
|
Welded
|
1.7
|
1.7
|
1.9
|
3.3
|
5.2
|
6.8
|
10.6
|
13.8
|
| |
|
|
|
|
|
|
|
|
|
|
|
